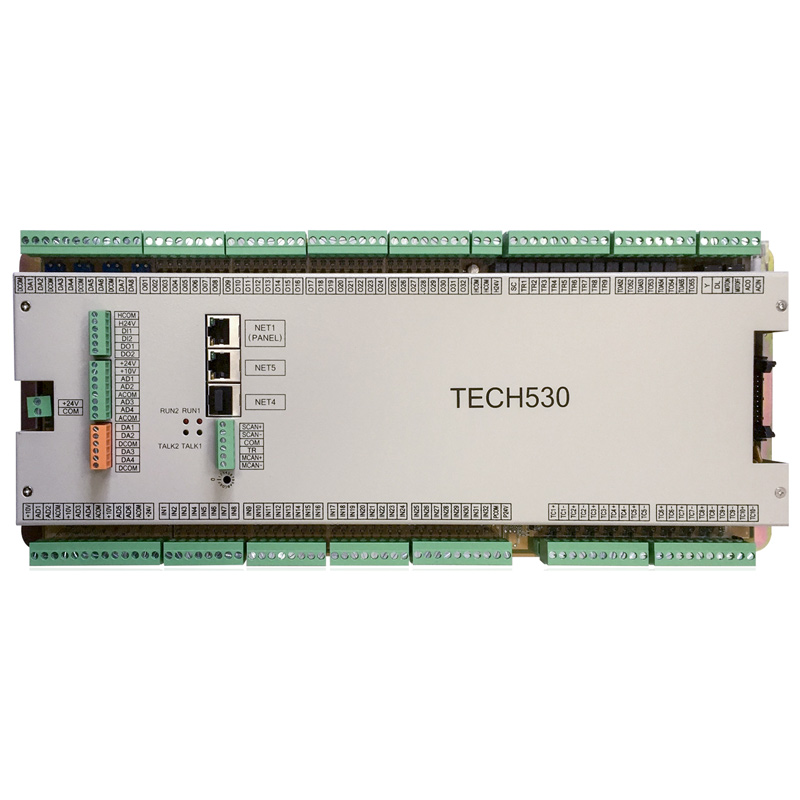

Tech 530 Controller
| TECH530 | |
| Items | Specifications |
| Size H(mm)*W(mm)*D(mm) |
415*175*58.6 |
| PB(Digital Input) | 32 |
| PC(Digital Output) | 32 |
| Relay(Relay Output) | 15(9 heating+2 motor+4 other) |
| TEMP Temperature Input | 10(9 barrel temperature+1 oil temperature) |
| AD(Analog Input) | 6+4(28 motion control) |
| DA(Analog Output) | 8(V) + 4(V) (28 motion control) |
| I0 Extendable(lnput + Output) | IO88(8 PB+8 PC) |
| Communication Port | NET*3 CAN*2 |
| Switching Power Supply | DC24V |
